Lightweigth
Material thickness optimization
Complex shape
Hollow profile - no weld seam
1 extrusion press
1600 tons power
Cut to length profiles
50 years experience
8000 Tons per year extrusion
6000 & 7000 alloys
Max diam. profile 160mm

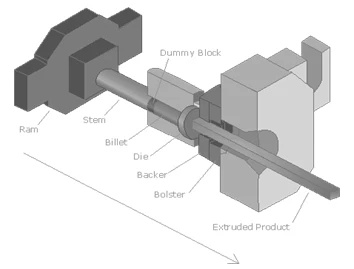

Ram : Pushes the material through the die
Stem : applies pressure to the heated aluminium billet
Raw material to be extruded
Die : Tool matrix
Dummy Block : helps protect the die by ensuring that the billet is pushed evenly and centrally
Backer et Bolster : Bloc de Soutien filière.
Extruded Product
The hot extrusion manufacturing process enables us to transform aluminium alloys into precise shapes to meet specific requirements (flat sections, tubular profiles, etc.).
How does it work?
Our raw material, aluminium, arrives in the form of billets, which are solid aluminium cylinders. Here are the different stages in the process

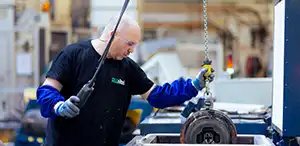

The billets are heated to around 400-500°C to make them malleable.

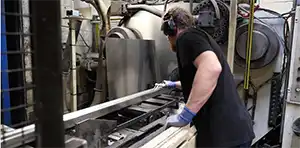

The heated billet is placed in an extrusion press. A piston pushes the aluminium through a die to obtain the desired shape. We can extrude lengths of up to 35m on our site.

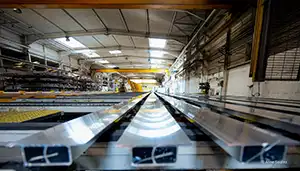

Once extruded, the aluminium is rapidly cooled by air or water to solidify its shape.

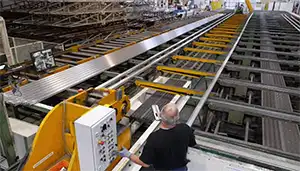

The extruded profile is stretched to correct any deformation, eliminate internal stresses and ensure precise dimensions.
Finally, the aluminium profiles are cut to the desired length and can undergo additional treatments to improve their mechanical properties.
Although extrusion may seem simple at first glance, in reality it requires a series of sophisticated, perfectly synchronised machines, as well as specific technical know-how. ALUnited has been using this manufacturing process since 1974, to meet the demanding needs of industries such as the automotive and construction sectors, and it has always been at the heart of our business.
